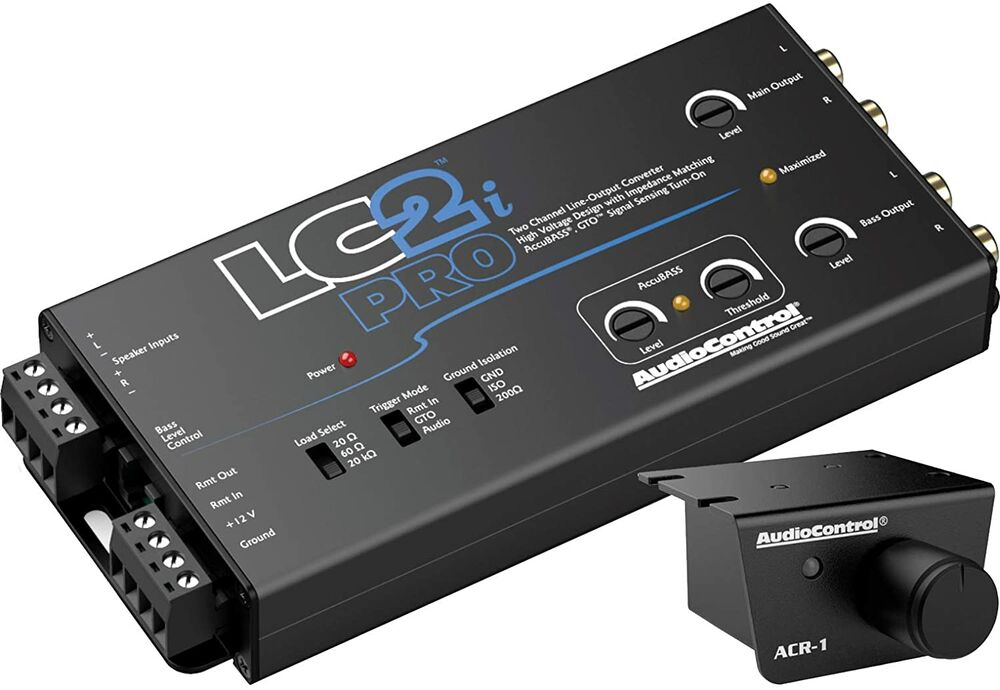

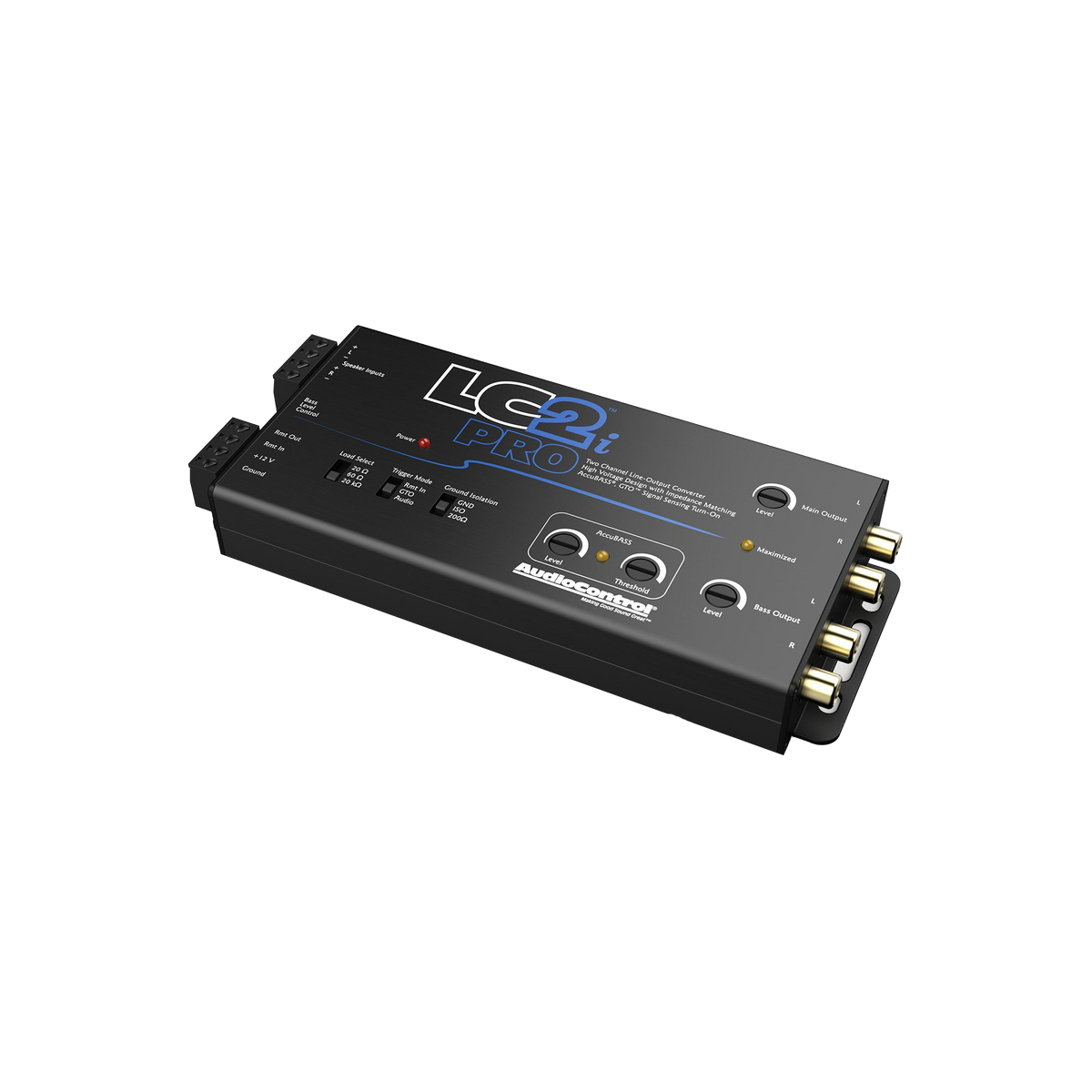

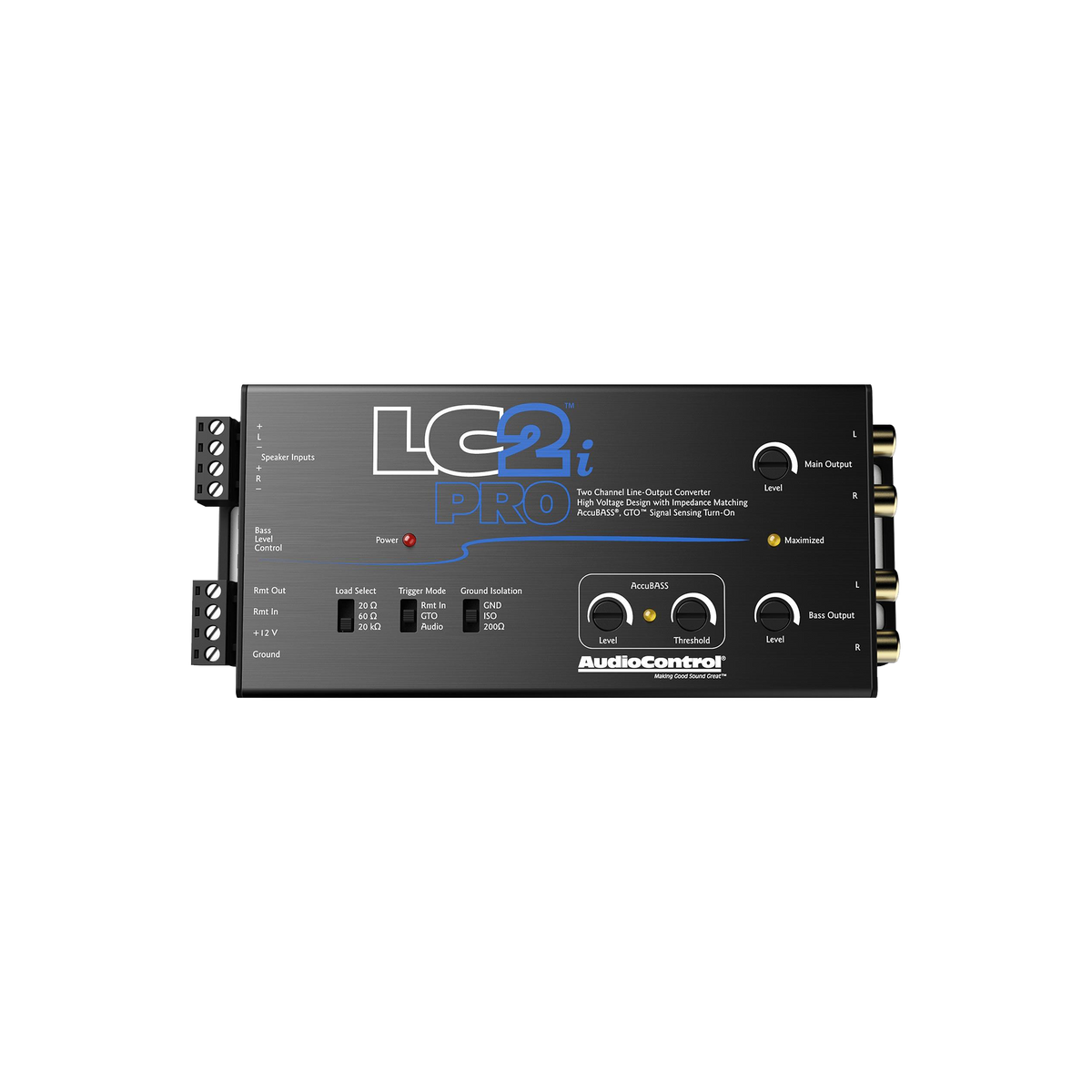

AudioControl LC2i PRO 2-Channel Line Output Converter with ACR-1 Dash Remote Subwoofer Control
AudioControl LC2i PRO 2-Channel Line Output Converter with ACR-1 Dash Remote Subwoofer Control
Couldn't load pickup availability
The AudioControl LC2i helps your aftermarket gear work cleanly with your vehicle's audio.
Details
Experience the power of premium sound with the AudioControl LC2i PRO. This compact, two-channel processor delivers unparalleled audio quality and performance. With advanced active input circuitry, it accepts speaker-level signals of up to 400 watts per channel, allowing you to connect to any audio system. The LC2i PRO features AudioControl's AccuBASS® technology, automatically correcting the bass response for balanced and natural sound. Its high-current, low-impedance output stage ensures crystal-clear sound with deep, impactful bass. The device also includes GTO™ Signal Sense circuitry for easy on/off with your factory radio, and its compact size makes installation a breeze. Upgrade your car audio system with the AudioControl LC2i PRO and enjoy the ultimate audio performance.
FEATURES:
- Compact chassis design for discreet installation.
- Active circuitry for improved sound quality without compromising bass response.
- Two-channel speaker-level input accepting up to 400-watt per channel signals.
- 9.5V preamp outputs with level-matching controls.
- AccuBass processing for bass roll-off correction.
- Threshold and level controls for optimizing bass response.
- Load select switch for matching factory system requirements.
- Trigger mode options: GTO Signal Sense, Audio, and Remote In.
- A ground isolation switch for eliminating grounding noise problems.
- Remote level control for adjusting the bass output from the front seat.
- Integrated mounting flanges for easy installation.
- Power connections require a hardwired connection to the vehicle's electrical system.
SPECIFICATIONS:
| Maximum Input Handling | 40V/400W (20kΩ setting) |
| Maximum Output Level | 9.5Vrms |
| Output Gain | ± 12dB |
| Frequency Response | 20Hz - 50kHz |
| THD | 0.01% |
| Signal-to-Noise Ratio | >110dB |
| ACR-1 Attenuation Range | 0dB to -19dB |
| Input Impedance | Selectable - 20Ω, 60Ω, and 20kΩ |
| Output Impedance | 150Ω |
| Power Draw | 200mA |
| Recommended Fuse Rating | 1A (not included) |
SKU: AC-LC2I-PRO
UPC: 851523007782
