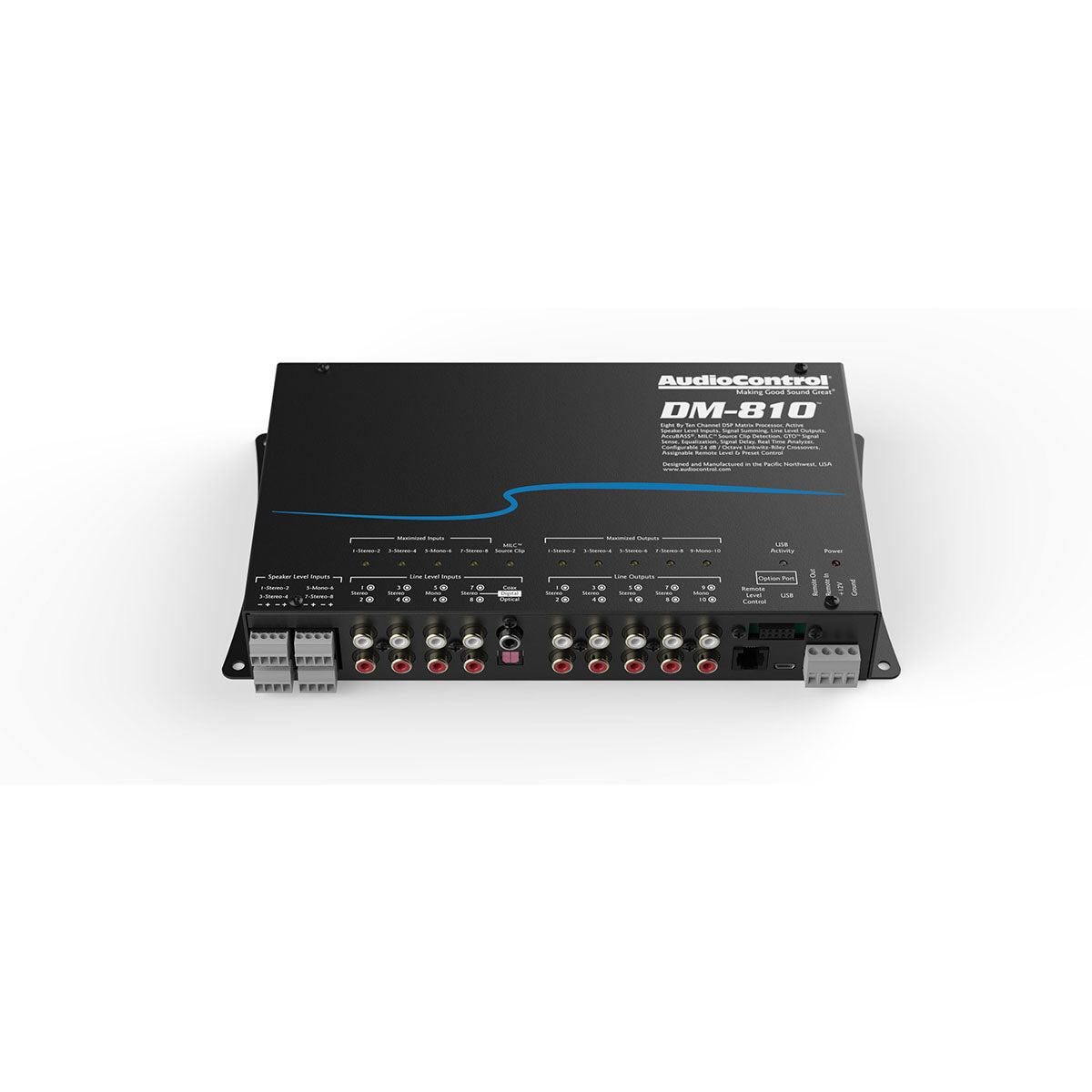

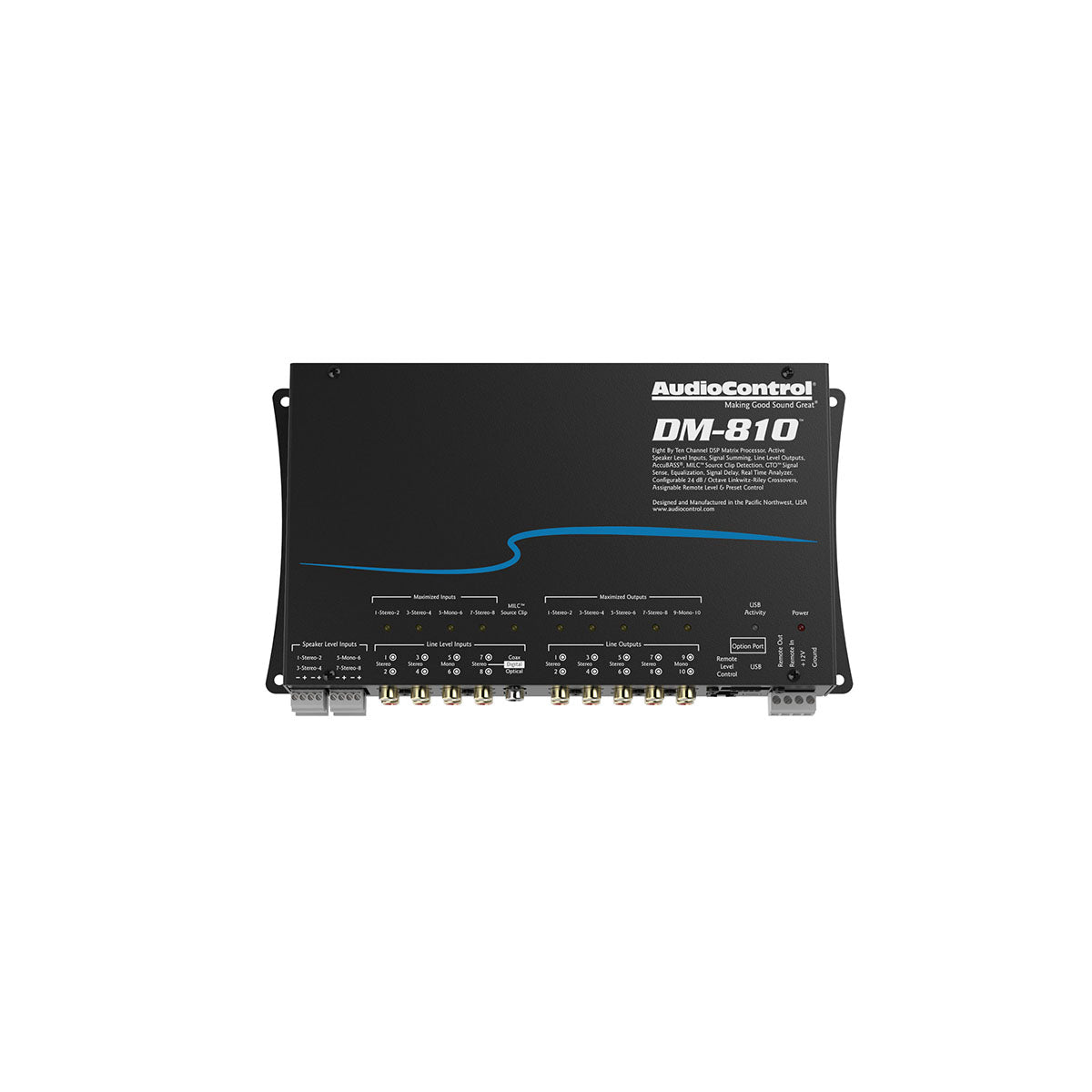

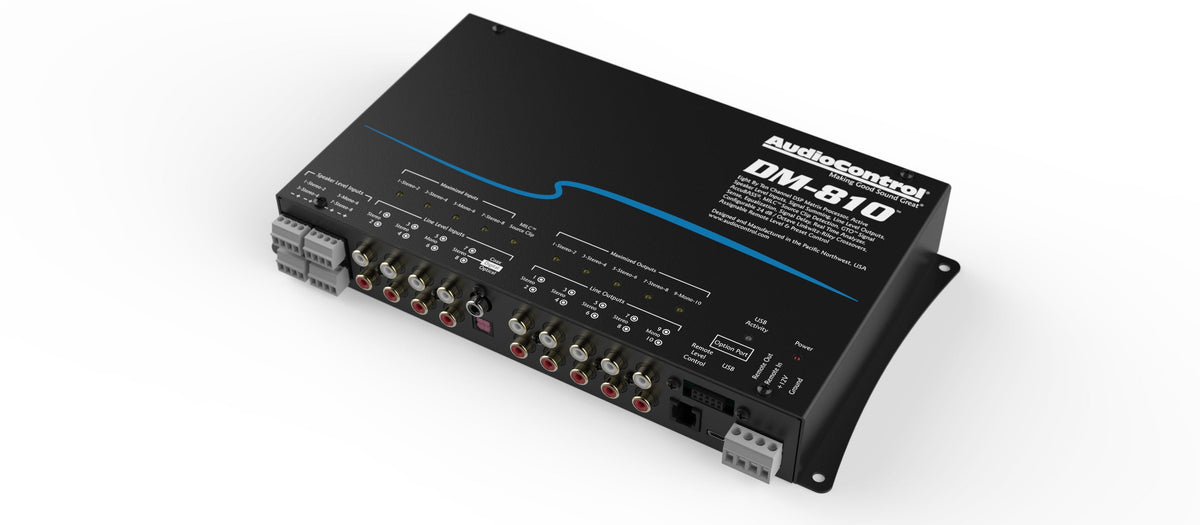

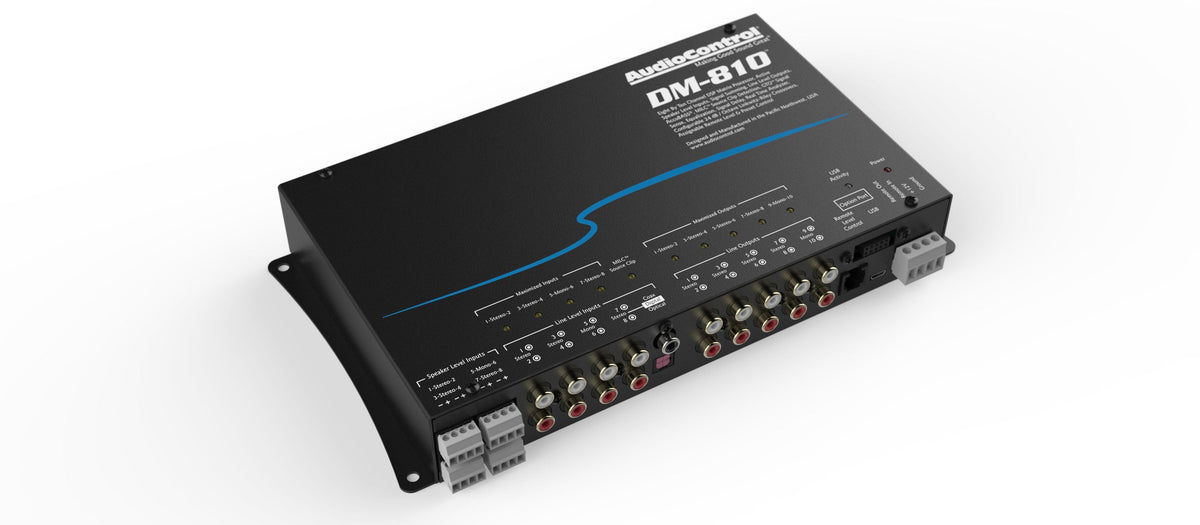

AudioControl DM-810 Processor

The AudioControl DM-810 helps your aftermarket gear work cleanly with your vehicle's audio.

Details

The powerful DM-810 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.

These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl’s DM Smart DSP app (available as a free download) contains the power of AudioControl processing through a flexible interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.

The built in Option Port on the DM-810 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.

Designed to be the ultimate in sound quality and enhanced audio performance, the DM-810 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in car audio systems.

When you require total control and optimization to achieve great sound quality, AudioControl’s DM-810 Processor is the solution.

FEATURES:

• Input and Output RTA for precise and informed tuning
• GTOTM Signal Sensing
• MILCTM Clip Detection
• AccuBASS®
• Signal Summing
• Signal Delay
• 12 and 24 dB/octave crossovers
• 30 band equalizer
• Optional ACR-3 remote for preset recall and level control
• Optional AC-BT24 Bluetooth Streamer/Programmer
• DM Smart DSP app available in downloads for Mac/PC or…

Inputs:

• Preamp Input Channels: 8
• Digital Inputs: 1 x Toslink and Coax
• Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ

Outputs:

• Preamp Outputs Channels: 10
• Maximum Output Level: 10 Vrms
• Output Impedance: 150 Ω

Performance:

• Total Harmonic Distortion: 0.01%
• Frequency Response: 20 Hz to 24 kHz
• Crossover Frequency: variable
• Crossover Type: 12 and 24 dB/octave Linkwitz-Riley

Control:

• 12 VDC Remote In
• 12 VDC Remote Out (always active when unit is on)

General:

• Power Supply: High Headroom PWM Switching
• Current Draw: 1A
• Recommended Fuse Rating: 3A

Weight and Dimensions:

• Dimensions: 10.5”W x 5.7”D x 1.6”H
• Weight: 2.6lbs (1.2kg)

SKU: AC-DM-810
UPC: 855814005969
