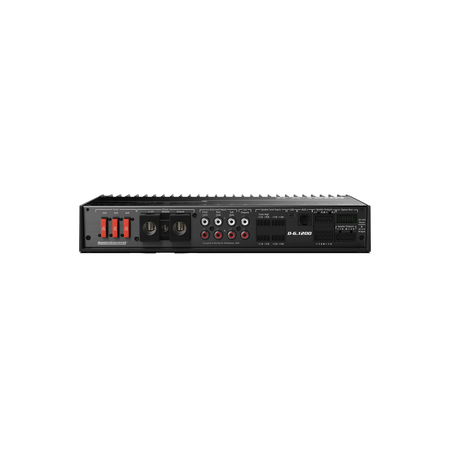

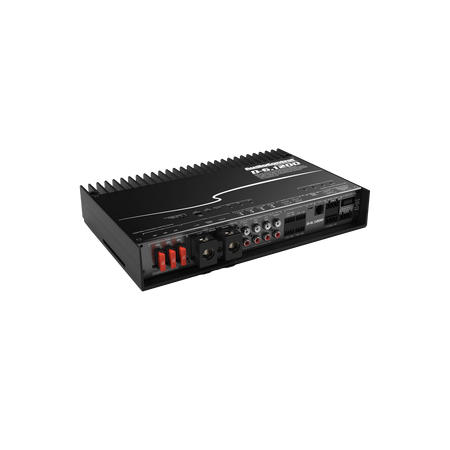

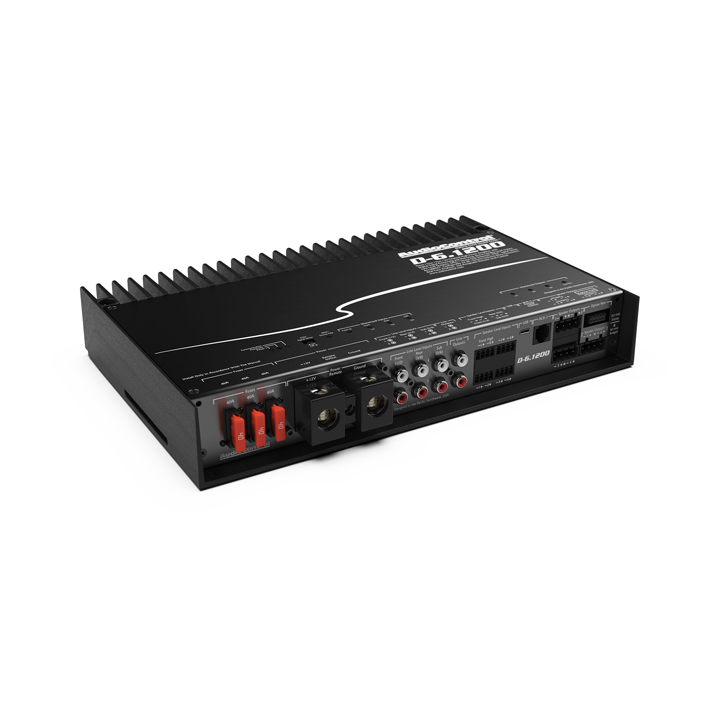

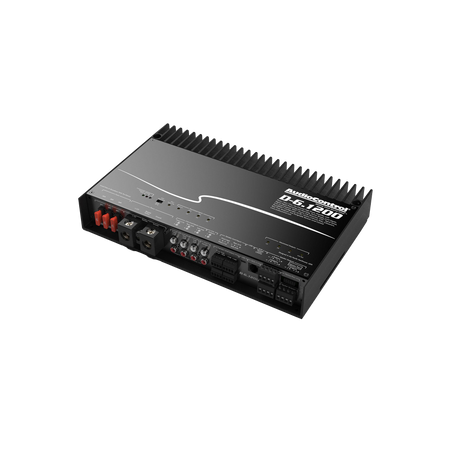

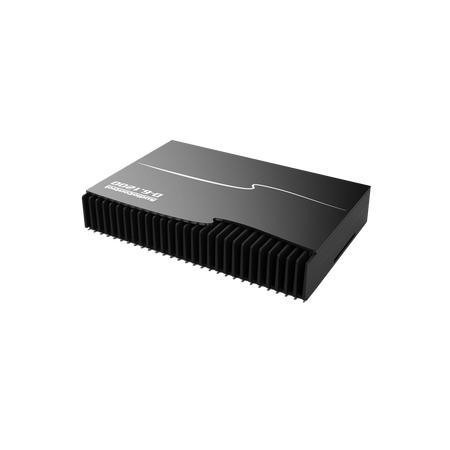

AudioControl D-6.1200 High-power 6 Channel DSP Matrix Amplifier with Accubass

The AudioControl D-6.1200 is a 6-channel amp built to drive your speakers or subs with clean, steady power.

At a glance

• Channels: 6

Details

AudioControl D-6.1200 6-channel DSP amplifier combines award-winning amplifier technology with Matrix DSP for precise tuning and powerful performance. Features include AccuBASS®, 30-band EQ, signal delay, polarity control, GTOTM signal sensing, MILCTM, and full integration via the DM Smart DSP app. Supports speaker-level and line-level inputs/outputs with routing flexibility and OEM integration tools. Built-in Option Port enables future expansion including hi-res streaming. Ideal for factory or aftermarket audio systems, delivering advanced control, clarity, and high-performance sound in a compact cast aluminum chassis.

*Note: Uninstall old DM software firmware before updating to the new version

Features:

• Built-in DSP with configurable 6/5/4/3-channel operation
• High power output: up to 6 × 200W @ 2Ω or 400W bridged
• AccuBASS®, MILC™, and GTO™ signal processing for clean, optimized sound
• 8-channel speaker-level inputs + 6 RCA inputs for OEM and aftermarket integration
• Flexible routing with 2 assignable outputs and full system expansion support
• Advanced tuning tools: 30-band EQ, time alignment, input/output delay
• Linkwitz-Riley crossovers (12/24 dB/octave) for precise system control
• Real-Time Analyzer (RTA) for accurate tuning and setup
• Solid aluminum chassis for durability and heat management
• Optional accessories: ACR-3 remote, AC-BT24 Bluetooth module
• DM Smart DSP software for full Mac/PC system control

Specifications:

Inputs

Preamp Inputs: 6 balanced

Preamp Input Voltage Range: 250 mV – 8 Vrms

Speaker-Level Inputs: 8 channels

Speaker-Level Input Voltage Range: 3 V – 40 Vrms

Outputs & Power

RMS Power @ 14.4V:

6 × 125W @ 4Ω

6 × 200W @ 2Ω

2 × 400W bridged @ 4Ω

Preamp Outputs: 2 channels

Maximum Preamp Output Voltage: 8.5 Vrms

Performance

Frequency Response: 20 Hz – 24 kHz

Signal-to-Noise Ratio: 102 dBA (ref 200W @ 2Ω)

THD+N: < 0.1%

Power/Ground Wire Gauge: 8 AWG to 3 AWG supported

Fuse Rating: 3 × 40A

Physical

Dimensions: 12.0" W × 8.0" D × 2.1" H

Weight: 7.1 lbs (3.2 kg)

UPC: 851523007218
